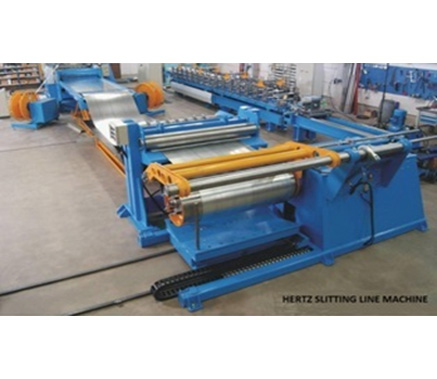

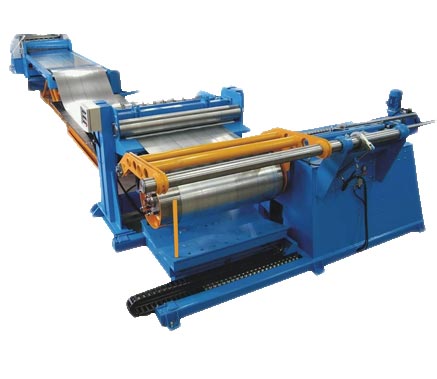

Slitting Machine

Our company is professional in providing Slitting Machine to customers. These Slitting Machine are available in different sizes and models as per the demands and specifications laid by the clients. Our product range is specially designed to slit all types of gauge strips to extreme close tolerances whether these are thick or thin. Our product range comprises of scrap management, coil handling and strip processing equipment. It is available in different capacities and standards according to the demand of the clients. Our product maintains constant parallel distance between the last deflector roll and re-coiler drum. Furthermore, these Slitting Machine are widely appreciated amongst our clients for their user friendly designs and high resistance to temperature variations.

Slitting process includes uncoiling, levelling of coil, slitting of coil (width wise cut), recoiling to make baby coils.

Slitting Machine are available in different sizes and models as per the demands and specifications laid by the clients.
It is available in different capacities and standards according to the demand of the clients.
Our product range is specially designed to slit all types of gauge strips whether thick or thin to extreme close tolerances.
These Slitting Machine are widely appreciated amongst our clients for their user friendly designs and high resistance to temperature variations.

Characteristics

Feature

Automatic Strip Threading.
Minimum Burr on strip.
High running accuracy of knife at arbours.
Constant parallel distance between the lastDeflector roll and re-coiler drum.
Straight edged recoiling.
Capacity to run upto 120 mts/min.
Economic efficency due to high automation level.
On site Installation.

Types- Single loop/Double loop/without loop.
Can slit coils with thickness range - 0.20 mm to 6.0 mm & width range- 500 mm to 2000 mm.
Coil Weight can vary between 5.0 -30 MT.- input/ out put
Minimum burr in strip.
High running accuracy of knife at arbours.
Constant parallel distance between the last deflector roll and re-coiler drum.
Capable of running up to 120 MPM.
Economically efficient due to high automation level.
Onsite installation.

Ask For Price
Click Here

Details of CTL Line Machines

Coil Car/ Coil Lifter
Coil Car/ Lifter ease the work of loading the coil on De-coiler's Jaws by coinciding the axis of both. Coil Car is power driven and can move to & fro the De-coiler on rails. Coil Car & Coil Lifter both can move up/down by hydraulic cylinder.

De-coiler/Un-coiler Unit
The de-coiler/uncoiling unit of our cut to length line allows several coil stocks to be pre-placed on the loading station. It is available with single head or double heads to suit different requirements.

Snubber & Pillar Table Assembly
Snubber is used for pressing the coil O.D. Snubber can be operated either hydraulically or pneumatically. Hydraulically operated pillar table facilitates the entry of sheet into straightener/leveler.

Sheet Leveler cum Feed Roller
The leveler is used to level the coil to desired flatness range. The feed rolls make the entry & exit of sheet from straightener easy. The rolls can be adjusted manually, hydraulically or by motor. Rolls are hardened to HRC 55-60. It provides good abrasion resistance and long service life.

Shearing Unit
Entry or Exit Shearing is provided according to customer's requirement. This unit is hydraulic.

Slitter Assembly
The coil is cut width wise as required by the cutters provided in the slitter assembly. The slitter is provided with feed rolls for facilitating the entry & exit of sheet. Separator is provided for providing a gap between slits.

Pinch Roller Pressure Pad & Deflector Rolls
These are used for tightening & ease the rewinding of slitted coil.

Re-coiler Unit
This unit rewinds the slitted coils into baby coils. The unit si provided with drive. Separator is also provided in this unit.

Coil Car
Coil Car/ Lifter eases the work of un- loading the slitted coils from Re-coiler's Jaws. Coil Car is power driven and can move to & from on rails. Coil Car can move up/down by hydraulic cylinder. In case of light coils, coil hanger can be used.

Scrap Winder
Driven by A/C geared motor to rewind the scrap.
